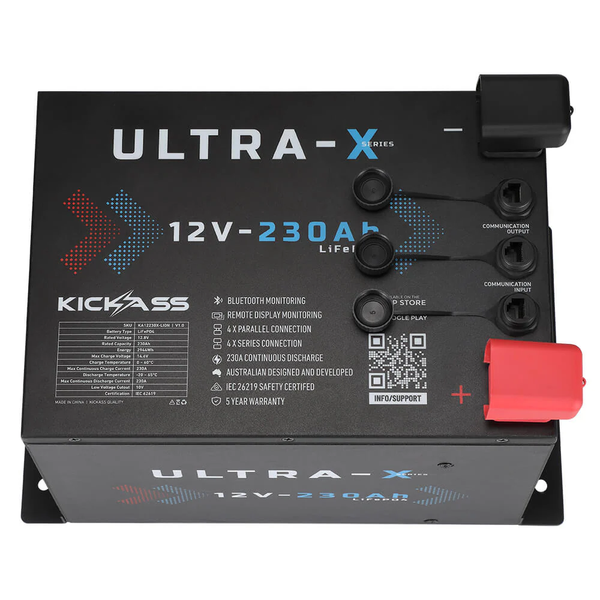

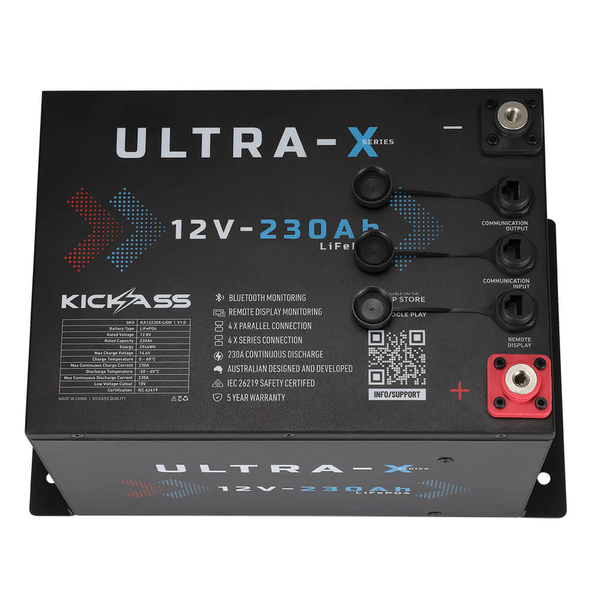

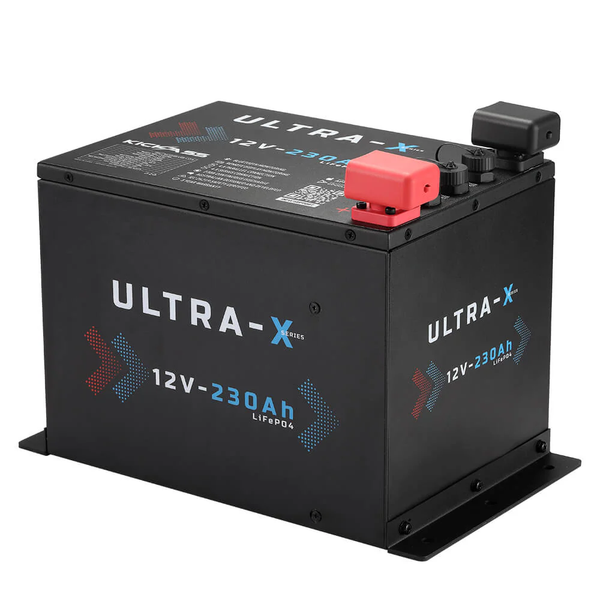

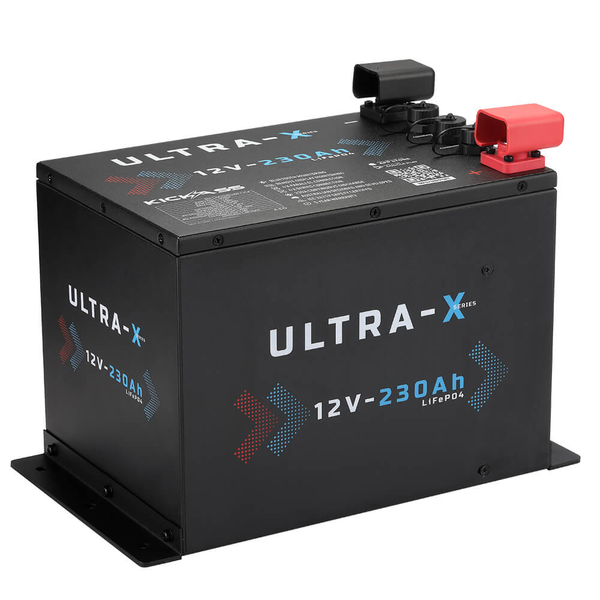

KickAss Smart 12V 230Ah Ultra-X Lithium Compact Deep Cycle Battery LiFePO4

The KickAss 12V 230Ah Lithium Battery delivers massive off-grid power in a compact, high-performance design. Built for serious touring, caravanning, and 4WD setups, it offers 230Ah of usable capacity, advanced Bluetooth monitoring, and full system expandability—making it ideal for large-scale energy storage in confined spaces.

Key Features:

• 230Ah usable capacity
• 230A continuous charge and discharge (460A pulse)
• Ultra-compact high-density design
• Integrated advanced Battery Management System (BMS)
• Bluetooth app monitoring and control
• Parallel and series configuration support
• 4000+ cycles at 80% depth of discharge (0.5C)
• Durable metal housing with integrated mounting points
• Australian safety certified and designed
• Dimensions (Battery): 300 x 215 x 225 mm
• Dimensions (with Terminals & Housing): 360 x 215 x 265 mm

Engineered for high-demand off-grid systems, this 230Ah lithium battery combines large energy storage with a compact footprint, making it suitable for installations where space is limited but power demands are high.

Despite its compact size—only slightly larger than a standard N70 battery—it delivers significantly higher usable capacity, making it an efficient replacement for bulky AGM battery banks.

A fully integrated Bluetooth monitoring system allows real-time access to key battery data, including state of charge, voltage, current, temperature, and system alerts. This ensures complete visibility and control over your power system via smartphone.

The advanced Battery Management System (BMS) provides comprehensive protection against overcharging, over-discharging, short circuits, and overheating, ensuring safe and stable operation in all conditions.

With full support for both parallel and series configurations, the battery can be scaled into large energy systems. Up to four units can be connected in parallel to deliver over 900Ah of usable capacity, making it suitable for extended off-grid and high-load applications.

For system-wide monitoring, multiple batteries can be linked using RJ45 communication cables and paired with an optional KickAss Remote Display Unit (RDU), allowing centralised monitoring without additional complex wiring.

Delivering 230Ah of usable capacity, this battery provides long-lasting energy storage for running fridges, inverters, lighting systems, and other off-grid appliances without frequent recharging.

High-performance discharge capability allows for 230A continuous output and 460A pulse handling, ensuring stable operation under heavy loads and sudden power spikes.

Built for longevity, the battery is rated for over 4000 cycles at 80% depth of discharge (0.5C), providing long-term reliability and excellent lifecycle value compared to traditional battery technologies.

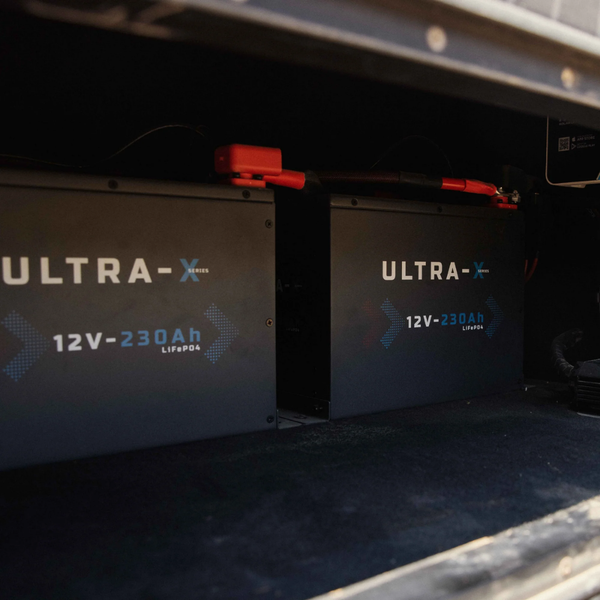

A rugged metal housing with integrated mounting points enhances durability while simplifying installation. The design removes the need for a separate battery tray, making it easier to mount securely in 4WDs, caravans, and custom installations.
